2013 Isuzu NPR
1
/
26

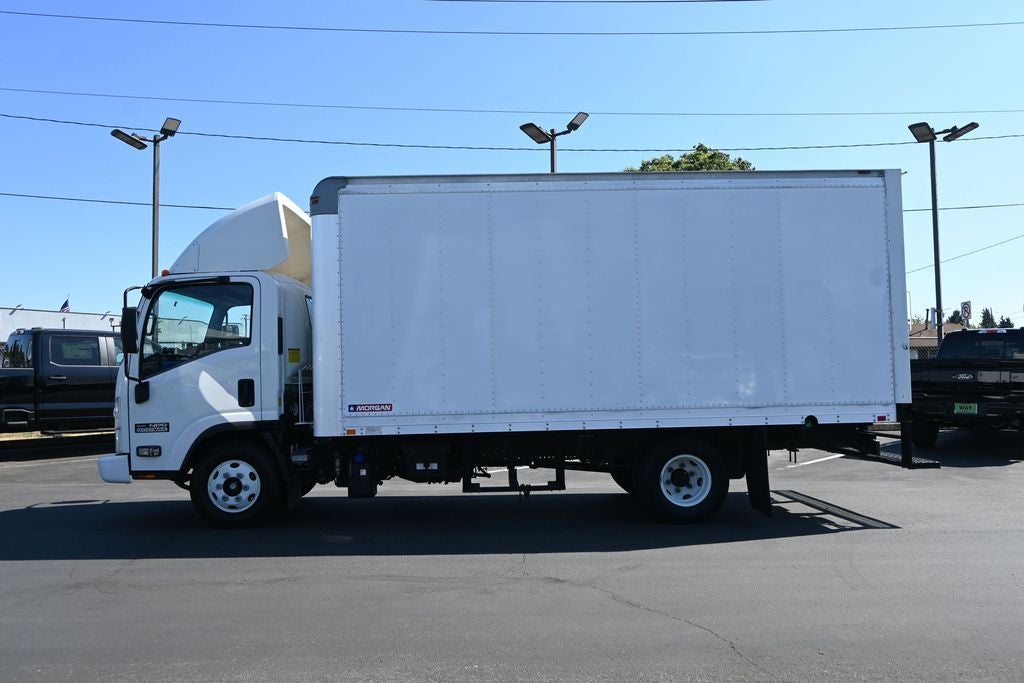

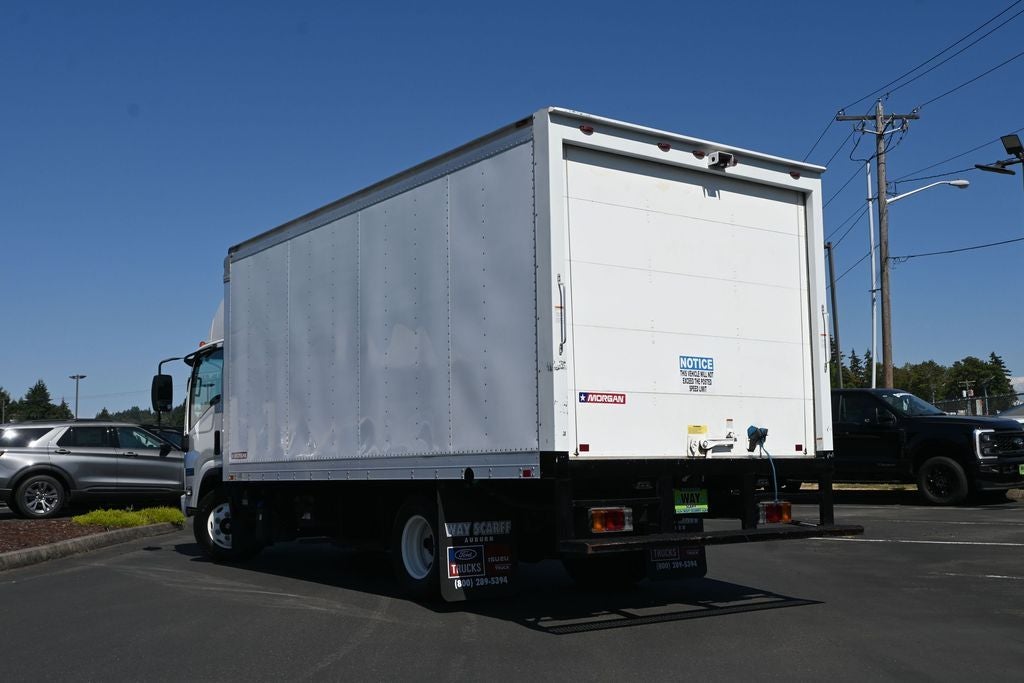

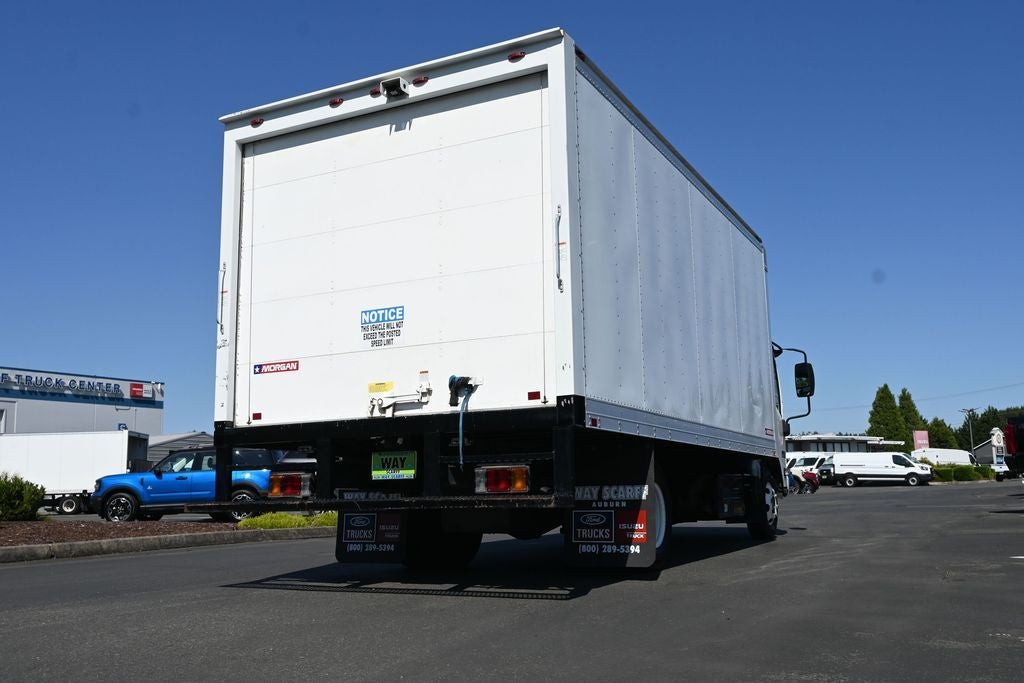

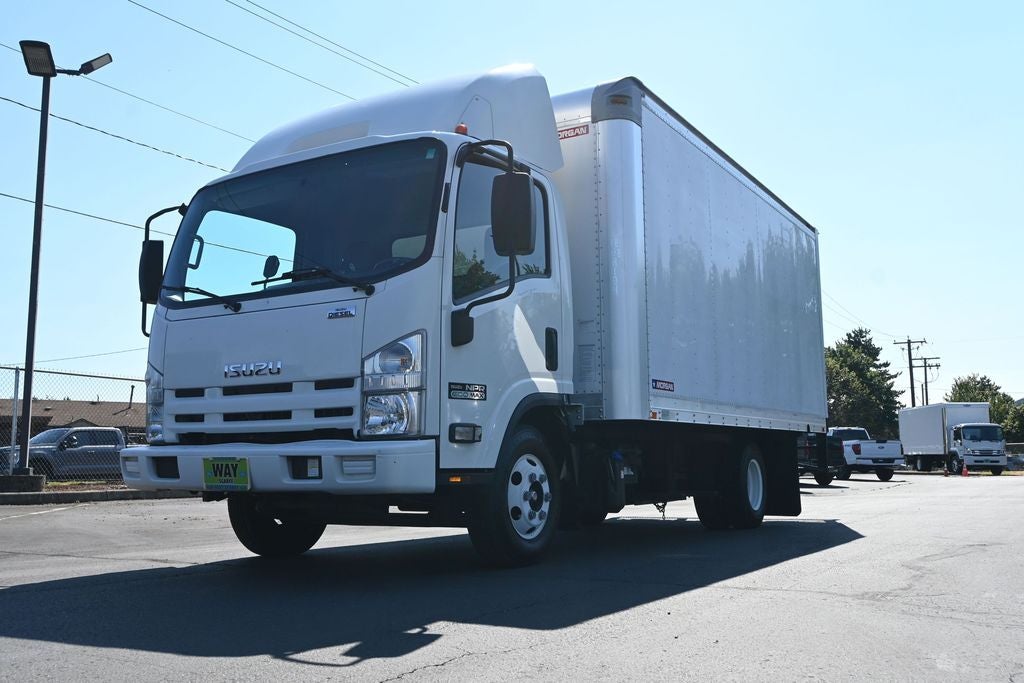

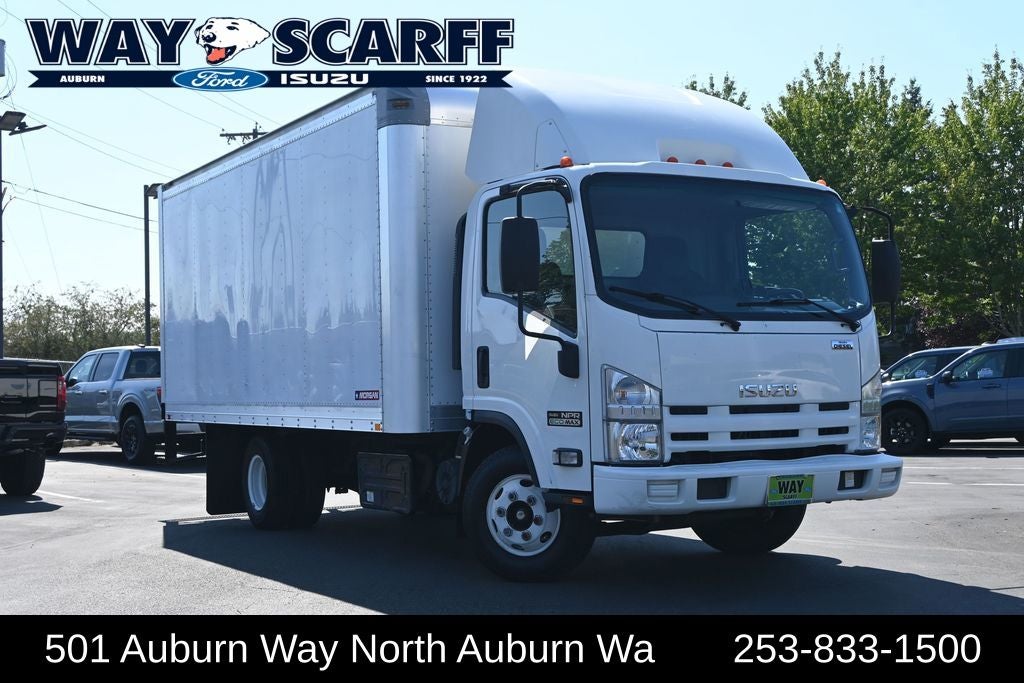

2013 Isuzu NPR Box Van NPR XD
-
$1,545 SAVINGS$26,950 Way Scarff Price
- Market Value: $28,495
- Way Scarff Discount: $1,545
- Way Scarff Price: $26,950
-
$1,545 SAVINGS$26,950 Way Scarff Price
- Market Value: $28,495
- Way Scarff Discount: $1,545
- Way Scarff Price: $26,950
Visit our Store
- Way Scarff Ford Auburn
-
501 Auburn Way North
Auburn, WA 98002
- Sales: 253-600-1219
- Service: 253-600-4779
- Parts: 253-378-1234
- Truck: 253-205-0203
Vehicle Information
VIN:
JALB4W176D7400619
Stock #:
E85031
Model Code:
NJ154
-
Body Style Box Van -
Exterior Color White
-

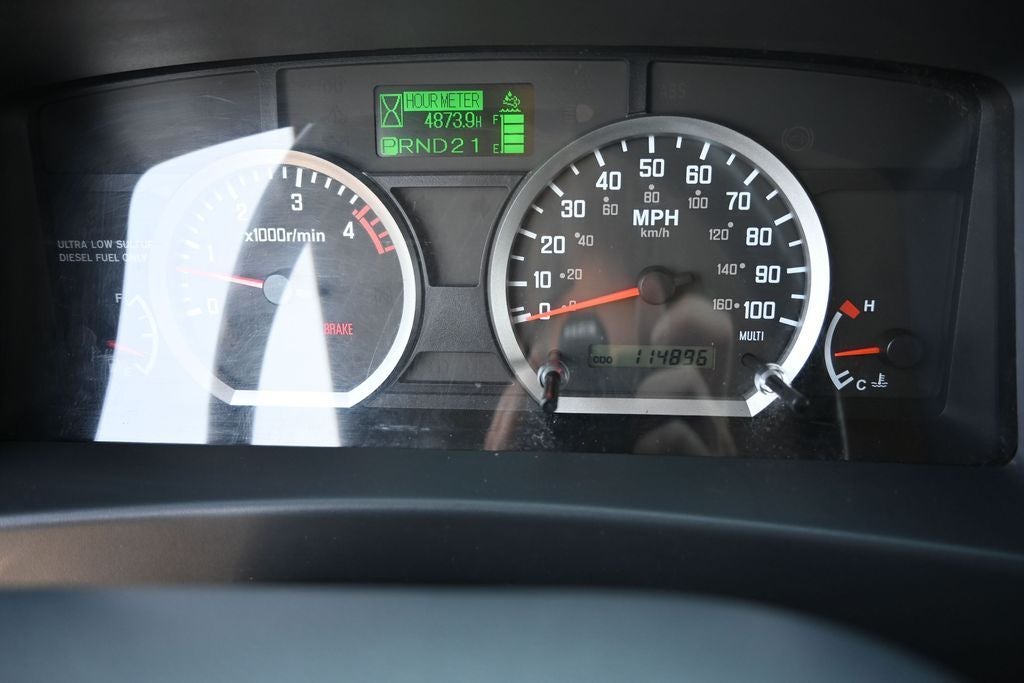

Mileage 114,853
-
Engine 4 Cyl - 3 L -

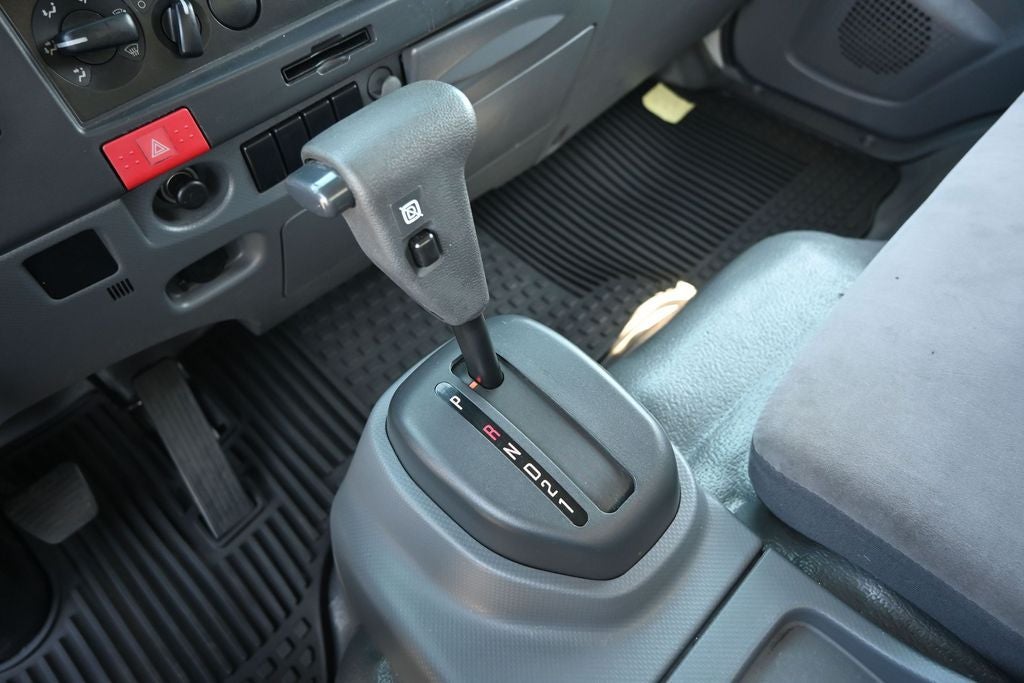

Transmission Automatic -
Fuel Type Diesel
Highlighted Features
Feature availability subject to final vehicle configuration. Please reference window sticker for more info.
- Turbo Charged Engine
- Cruise Control
Dealer Comments
Way Scarff Ford has been serving the Auburn and South King County communities since 1922. That's the Way Scarff Way
Price may not include tax title license and fees. A $200 negotiable documentary service fee may be added to the price of the vehicle. 2013 Isuzu NPR White Box Van NPR XD 3.0L 4-Cylinder Diesel
Price may not include tax title license and fees. A $200 negotiable documentary service fee may be added to the price of the vehicle. 2013 Isuzu NPR White Box Van NPR XD 3.0L 4-Cylinder Diesel
Eligible Benefits
All Features
- Truck Application
- GVWR, 12000 lbs (5443 kg) capacity
- Air Cleaner, Dry Paper single element (Donaldson brand). Air cleaner canister standard with air restriction gauge.
- Alternator, 110 AMP with integral regulator
- Battery, Dual 12-V maintenance free, 750 CCA each
- Rear wheel drive
- Front GAWR, 5360 lbs (2431 kg) capacity
- Front Axle, Reverse Elliot "I"-beam rated at 6830 lbs. (3098 kg). Includes integral hydraulic power steering. Ratio 18.8-20.9:1
- Front Suspension, 8440 lbs. (3828 kg) capacity. Semi-elliptical tapered leaf springs. Includes shock absorbers and stabilizer bar.

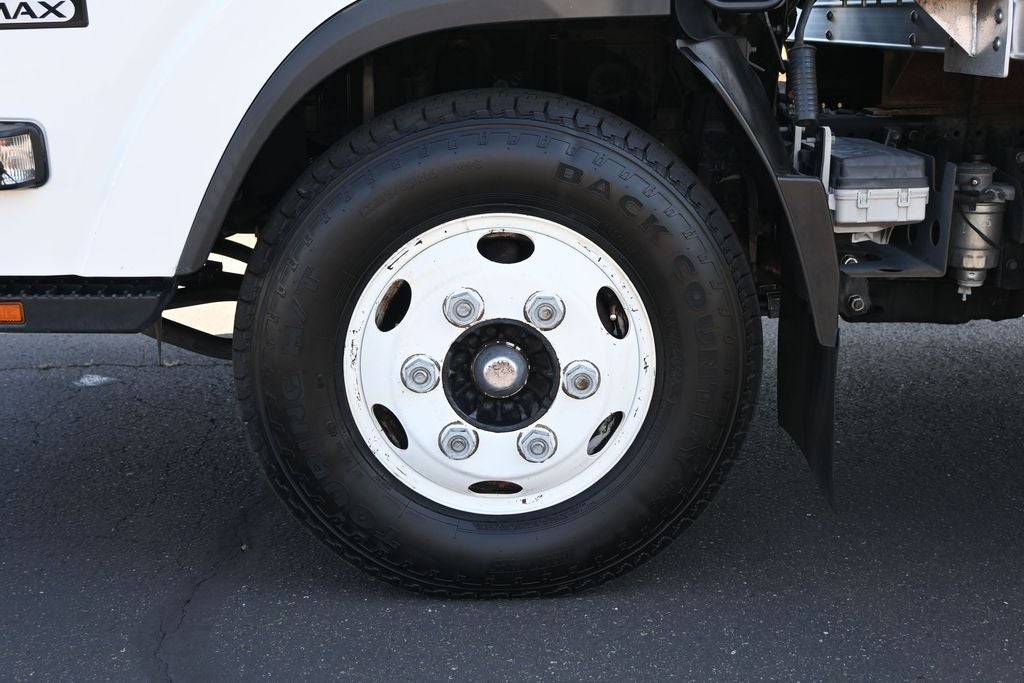

- Front Wheels, 16" x 6", 6-hole disc, painted white
- Front tires, 215/85R16E (10 ply) LRR (low rolling resistance) tubeless steel belted radial, all season
- Rear GAWR, 8840 lbs capacity
- Rear Axle, R050, full-floating single-speed, 11,020 lbs. (4999 kg) capacity with oil lubricated rear wheel bearings
- Rear Axle Ratio, 5.125:1
- Rear Suspension, 9880 lbs. (4481 kg) capacity. Semi-elliptical main and auxiliary multi-leaf springs. Includes shock absorbers.
- Rear Wheels, 16" x 6", 6-hole disc, painted white
- Rear tires, 215/85R16E (10 ply) LRR (low rolling resistance) tubeless steel belted radial, all season
- Wheelbase, 110" (279.4 cm), includes ladder type channel frame. Full C section frame flaired forward of 3rd crossmember. 29.5 inches (74.9 cm) wide. Yield strength 44,000 psi; section modulus 6.07 cu.in. and RBM 267,080 lb/ft/in per rail

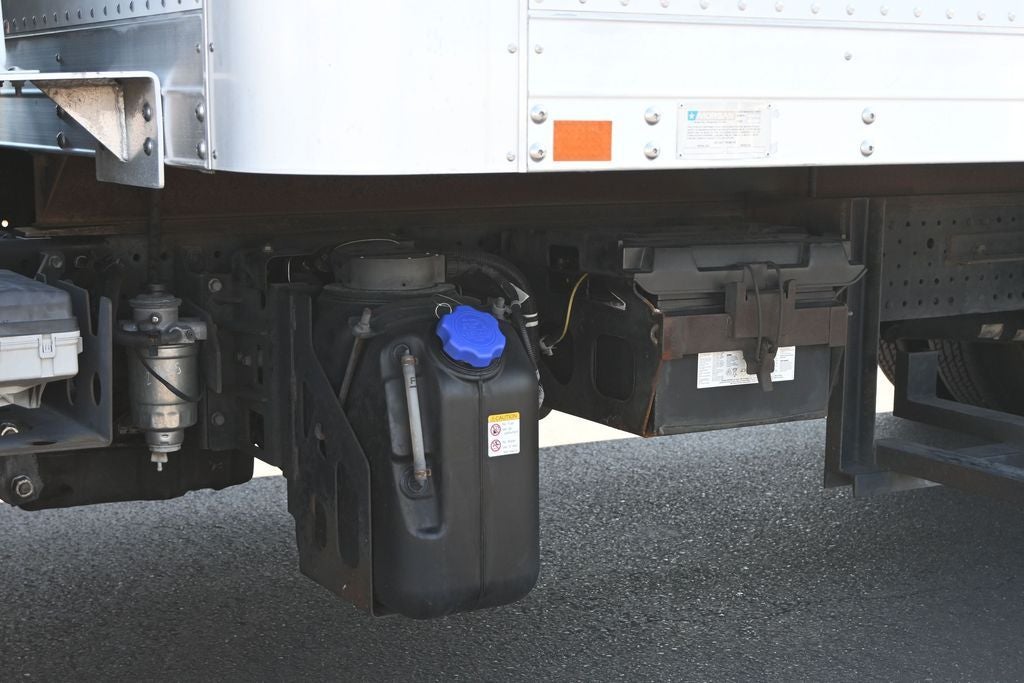

- Fuel Tank, 25-gallon (94.6L) rectangular fuel tank. Mounted between frame rail through the rail fuel fill. Fuel water separator with dash mounted warning light.
- Exhaust Brake, vacuum operated
- Exhaust System, Single horizontal with DPF (Diesel Particulate Filter)
- Paint Scheme, Solid

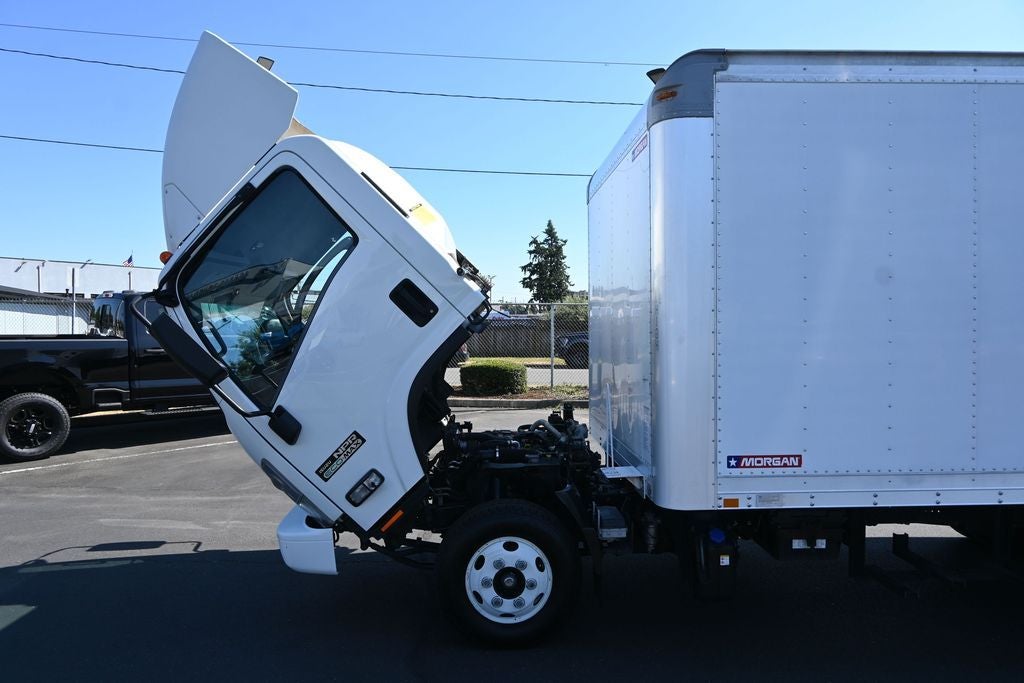

- Cab Mounts, All steel low cab forward, BBC 70.7 in. 45 deg. mechanical tilt with torsion assist

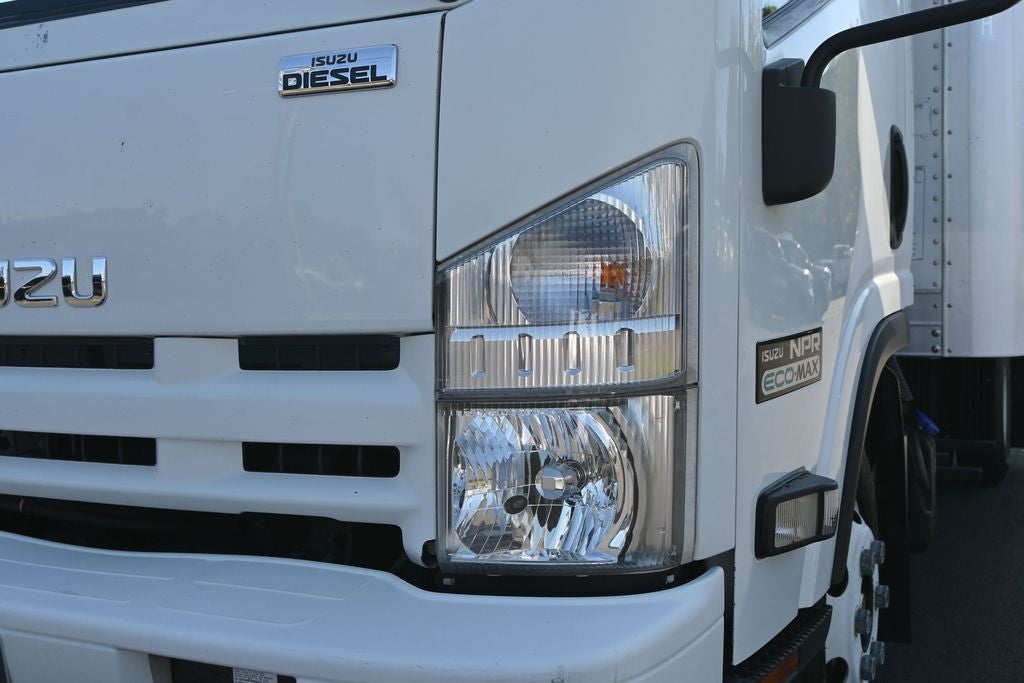

- Daytime running lamps
- Windows, Tinted glass
- Mirrors, Dual cab mounted exterior with integral convex mirror
- Windshield Wipers, Intermittent wet-arm

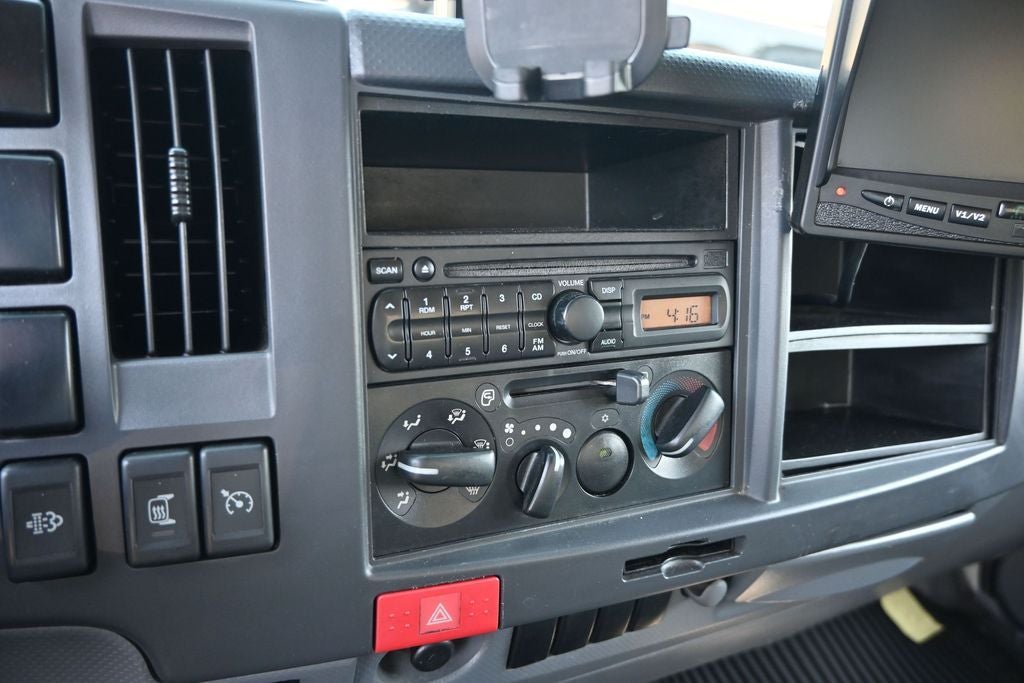

- AM/FM/CD stereo radio

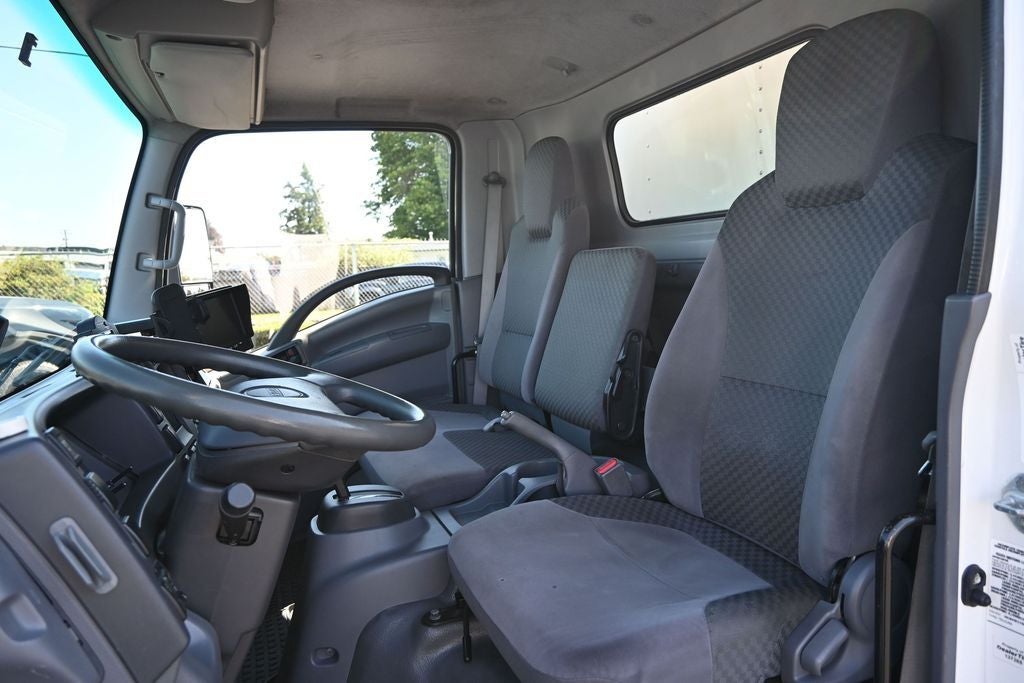

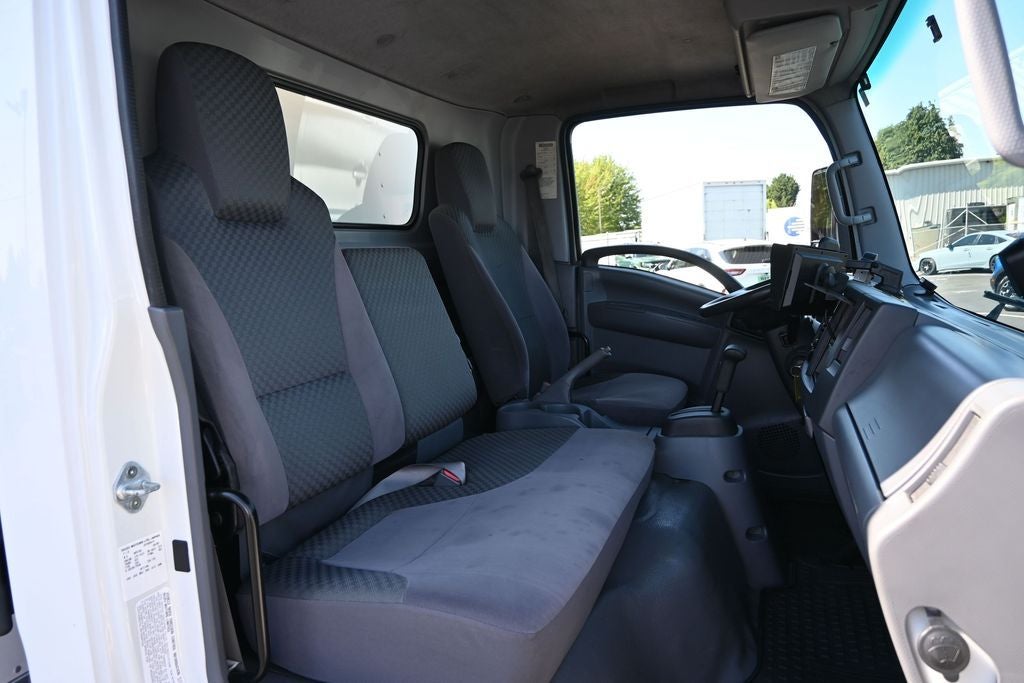

- Tricot and jersey knit combination cloth covered reclining highback driver seat with single two occupant fold down passenger seat
- Floor mats

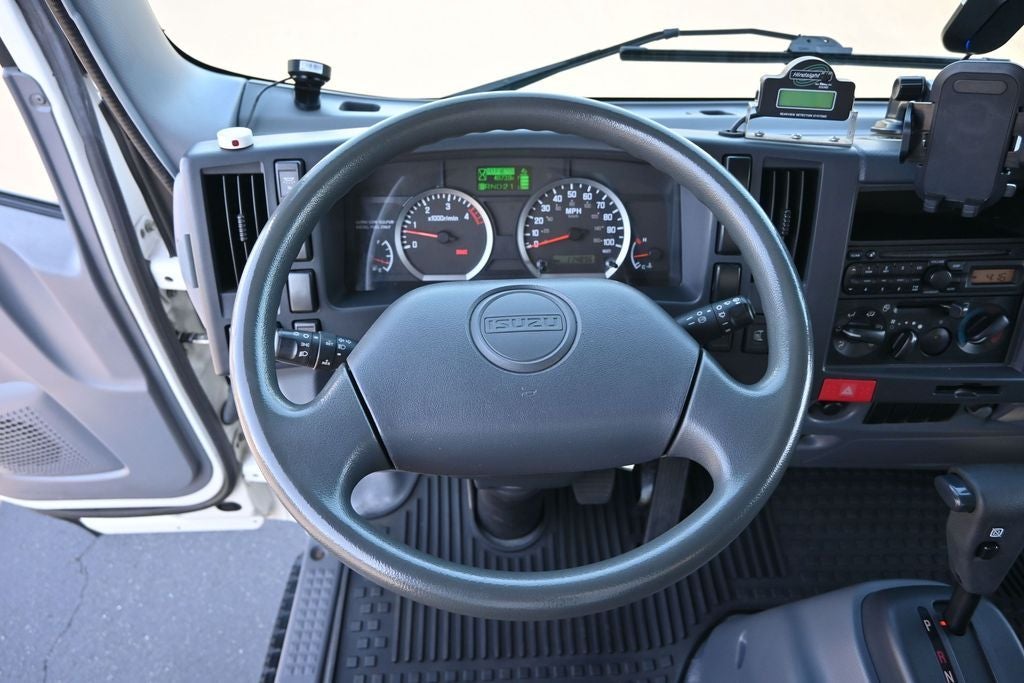

- Tilt and telescoping steering column
- Cruise control
- Power windows & door locks
- 4 channel anti-lock brake system
- Daytime running lamps
- EBD (Electronic Brake Distribution)

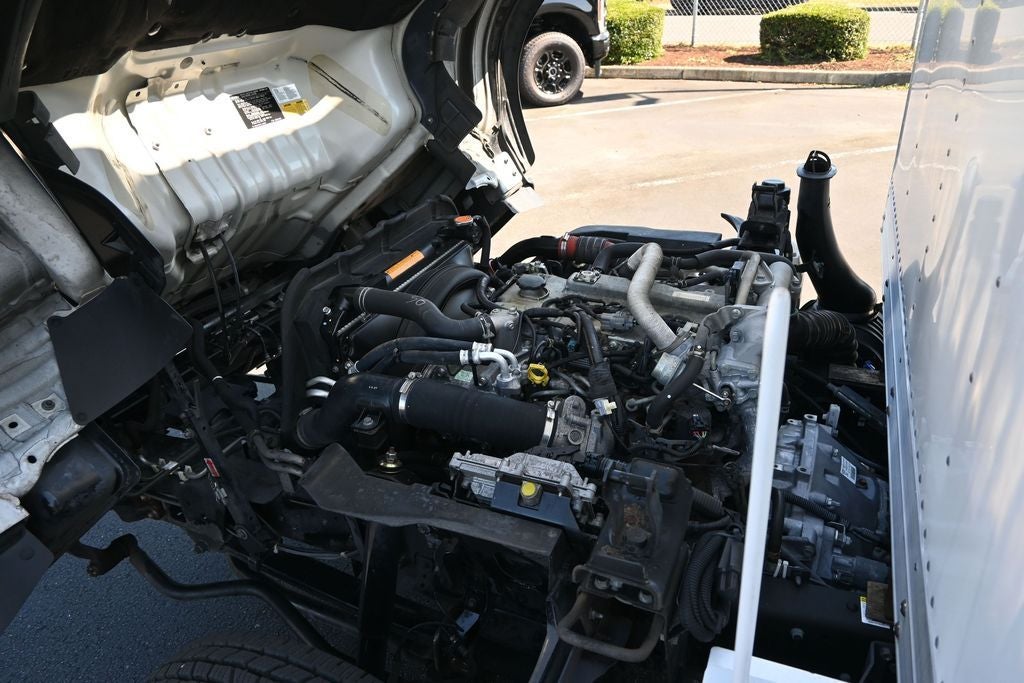

4JJ1-TC , DIESEL ENGINE 183 CID (3.0L), 150 HP AT 2800 RPM, 282 LB FT GROSS TORQUE AT 1600-2800 RPM. 4 CYLINDER, 16 VALVE, FOUR CYCLE, CHAIN-DRIVEN DUAL OVERHEAD CAMSHAFT VALVE TRAIN, A CAST IRON CYLINDER BLOCK, AND A CAST ALUMINUM CYLINDER HEAD. TURBOCHARGED, INTER-COOLED, WATER COOLED EGR, DIRECT INJECTION, ELECTRONICALLY CONTROLLED COMMON RAIL FUEL SYSTEM AND ENGINE CRUISE CONTROL.
- Oil level check switch and light. Engine warning system with audible warning for low oil pressure
- high coolant temperature
- and a protection system that will reduce fueling if excessive coolant temperature is detected. (STD)
- Front Frame Rating: - TBD -
- Cold Cranking Amps @ 0° F (Primary): 750
- Cold Cranking Amps @ 0° F (2nd): 750
- Maximum Alternator Capacity (amps): 110
- Maximum Alternator Watts: 1320
- Total Cooling System Capacity (qts): 12.6
- Gross Axle Wt Rating - Front (lbs): 5360
- Gross Axle Wt Rating - Rear (lbs): 8840
- Curb Weight - Front (lbs): 3498
- Curb Weight - Rear (lbs): 1835
- Gross Vehicle Weight Rating Cap (lbs): 12000
- Suspension Type - Front: Tapered Leaf
- Suspension Type - Rear: Multi-Leaf
- Spring Capacity - Front (lbs): 6830
- Spring Capacity - Rear (lbs): 9880
- Axle Type - Front: Reverse I-Beam
- Axle Type - Rear: Full-Floating
- Axle Capacity - Front (lbs): 6830
- Axle Capacity - Rear (lbs): 11020
- Axle Ratio (:1) - Rear: 5.125
- Shock Absorber Diameter - Front (mm): 42
- Shock Absorber Diameter - Rear (mm): 42
- Stabilizer Bar Diameter - Front (in): 1.65
- Brake Type: Power
- Brake ABS System: 4-Wheel
- Disc - Front (Yes or ): Yes
- Front Brake Rotor Diam x Thickness (in): 11.5 x - TBD -
- Drum - Rear (Yes or ): Yes
- Rear Drum Diam x Width (in): 12.6 x 2.95
- Front Tire Order Code: I53/I69
- Rear Tire Order Code: I53/I34
- Front Tire Size: 215/85R16E
- Rear Tire Size: 215/85R16E
- Front Tire Capacity (lbs): 5360
- Rear Tire Capacity (lbs): 9880
- Revolutions/Mile @ 45 mph - Front: 682.9
- Revolutions/Mile @ 45 mph - Rear: 682.9
- Number Of Tires Front: 2
- Number Of Tires Rear: 4
- Front Wheel Size (in): 16 x 6
- Rear Wheel Size (in): 16 x 6
- Front Wheel Offset (mm): 127.0
- Rear Wheel Offset (mm): 127.0
- # of Bolt Holes - Front: 6
- # of Bolt Holes - Rear: 6
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Front Bolt Pattern: 6 Hole JIS 8.75"
- Rear Bolt Pattern: 6 Hole JIS 8.75"
- Steering Type: Power
- Steering Ratio (:1), On Center: 18.8 - 20.9
- Steering Ratio (:1), At Lock: 18.8 - 20.9
- Turning Diameter - Curb to Curb (ft): 32.2
- Turning Diameter - Wall to Wall (ft): 37.4
- Frame Type: Ladder
- Sect Modulus Rails Only (in³): 6.07
- Frame RBM (N/A): 267080
- Frame Strength (lbs): 44000
- Frame Thickness (in): 8.43 X 2.76 X 0.20
- Fuel Tank Capacity, Approx (gal): 25
- Fuel Tank Location: In frame rail
- Wheelbase (in): 110.0
- Length, Overall w/o rear bumper (in): 200.6
- Width, Max w/o mirrors (in): - TBD -
- Height, Overall (in): 90.8
- Overhang, Front (in): - TBD -
- Overhang, Rear w/o bumper (in): - TBD -
- Front Bumper to Back of Cab (in): 70.7
- Cab to Axle (in): 87.6
- Cab to End of Frame (in): 129.8
- Ground to Top of Frame (in): 31.8
- Frame Width, Rear (in): 29.5
- Ground Clearance, Front (in): - TBD -
- Ground Clearance, Rear (in): - TBD -
- Body Length Default Value (ft): 12
- Passenger Capacity: 3
- Front Head Room (in): - TBD -
- Front Leg Room (in): - TBD -
- Front Shoulder Room (in): - TBD -
- Front Hip Room (in): - TBD -
- Vehicle Name: Isuzu NPR DSL REG AT ECO-MAX
- Body Style: Tilt Chassis Cab
- Driver Ratio: 1
- Torque @ Clutch Engage (ft-lbs): 265
- Torque Converter: 1.764
- Static Loaded Radius (in): 14.3
- Max Speed For Gradeability: 74
